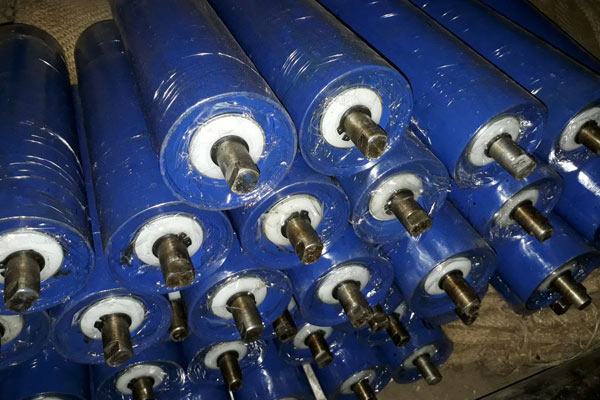

IDLERS & ROLLERS
Our idlers are engineered for tough and demanding applications with an interference fit between the shaft and the bearing for improved sealing, better stability and longer life. Our idlers are available in a wide variety of configurations including: troughing, return, impact, rubber disc return, self aligning trough, self aligning return, sprocketed ends, garland, deep pan conveyor rollers.
- As a basic guideline our idlers are manufactured as per IS:8598 standards only
- Deep drawn steel end cap with metal outer seal provides excellent durability and protection
- Exclusive multi-labyrinth nyloplast-6 contact seal helps prevent bearing contamination
- Shafts are precisely machined, to help ensure proper bearing alignment
- Heavy precision ground sealed for life ball bearings
- Reduced friction levels help conserve energy
| BELT WIDTH (mm) | IDLER OUTER DIAMETER (mm) | IDLER LENGTH (mm) | SHAFT DIAMETER AT BEARING (mm) | TROUGHING ANGLE (Degrees) |
|---|---|---|---|---|
| 400 | 60.3-76.1 | 180-220 | 20 | 10/20/25/30/35/45 |
| 500 | 60.3-76.1 | 200-280 | 20 | 10/20/25/30/35/45 |
| 650 | 76.1-88.9 | 250-300 | 20 | 10/20/25/30/35/45 |
| 800 | 76.1-114.3 | 300-350 | 25 | 10/20/25/30/35/45 |
| 1000 | 88.9-139.7 | 400-450 | 25 | 10/20/25/30/35/45 |
| 1200 | 114.3-127.0 | 450-500 | 30 | 10/20/25/30/35/45 |
| 1400 | 127.0-139.7 | 500-550 | 30 | 10/20/25/30/35/45 |
| 1600 | 139.7-152.4 | 600-650 | 30 | 10/20/25/30/35/45 |
| 1800 | 139.7-152.4 | 65-700 | 35 | 10/20/25/30/35/45 |
| 2000 | 152.4-159.0 | 750-800 | 40 | 10/20/25/30/35/45 |
